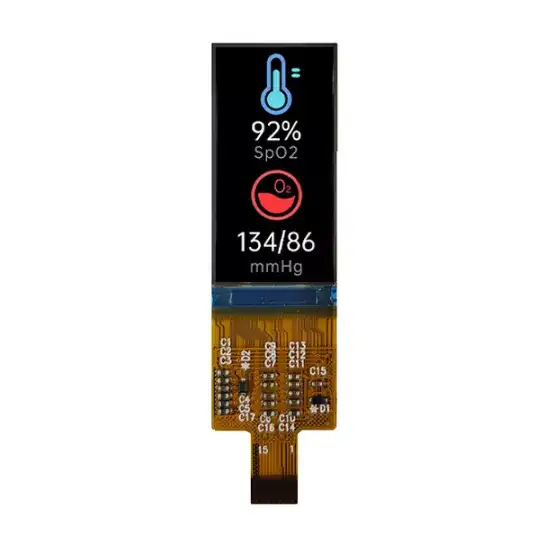

0.95 ນິ້ວ 120x240 AMOLED

Veragonix ແມ່ນຜູ້ຜະລິດໂມດູນ module amoled ທີ່ເປັນມືອາຊີບແລະຜູ້ສະຫນອງໃນປະເທດຈີນ. ພວກເຮົາໄດ້ຢູ່ໃນສະຫນາມນີ້ເປັນເວລາຫຼາຍກວ່າ 18 ປີແລ້ວສະເຫນີຂະຫນາດຕັ້ງແຕ່ 0.9 ເມັດເຖິງ 21.5inch. ເຄື່ອງຊະຫັດນີ້ 0.95 ນິ້ວ 120x240 AMOLED ແມ່ນເຄື່ອງຈັກທີ່ມີປະສິດຕິພາບສູງ 0.95inch AMOED SMODWATCHES ສໍາລັບ SmartWatches ລຸ້ນຕໍ່ໄປ. ປະກອບມີຄວາມລະອຽດ CRISP 120 × 240 ລ້ານສີ (ຄວາມເລິກ 24 ບິດ), ໂມດູນ 24% ຂອງ Gamut ສີທີ່ມີອັດຕາສ່ວນ 100,000: 1,000: 1.

ຕົວແບບ:VXO-095AMA-107

ສົ່ງສອບຖາມ PDF DownLoad

ລາຍລະອຽດຜະລິດຕະພັນ

AMOLED is an OLED display device technology widely used in mobile phones, media players, TVs, and digital cameras. As a professional AMOLED Module manufacturer and supplier in China, what are the advantages of this Victronix 0.95 inch 120x240 AMOLED? At first, it features a 120 ×240 pixels (RGB stripe) resolution within an active area of just 10.8 × 21.6 mm. Secondly, with a typical brightness of 450 cd/m² (up to 500 cd/m²), a uniformity of over 85%, and a wide viewing angle of 88°, it delivers exceptional brightness and clarity. In addition, it supports both 3-wire/4-wire SPI and MIPI DSI interfaces for versatile system integration. It has passed rigorous environmental tests (ESD, vibration, temperature cycling) for operation in temperatures from -20°C to 70°C.

This Victronix 0.95 inch AMOLED combines brilliant AMOLED technology with power efficiency and industrial-grade durability and is designed for bracelets, smartwatches, color displays, video phones, digital cameras, medical devices, military equipment, portable information devices, electronic locks, etc.

GENERAL INFORMATION

Item	Contents	Unit
Display Mode	AMOLED	/
LTPS Glass Outline(W×H×T)	12.80×27.35×0.2	mm
Encapsulation Glass Outline(W×H×T)	12.80×24.40×0.31	mm
Active area (W×H)	10.8×21.6	mm
Number of Dots	120×3(RGB)×240	/
Diagonal Inch	0.95	inch
Pixel pitch (W×H)	80×80	um
Glass Thickness	0.2 (LTPS) 0.31(Encap)	mm
Total Thickness	0.78	mm

ABSOLUTE MAXIMUM RATINGS

Parameter	Symbol	Min	Max	Unit
Supply voltage (Display)	VCC	-0.3	5.5	V
	IOVCC	-0.3	5.5	V
	ELVDD	4.5	4.7	V
	ELVSS	-4.0	-0.6	V
Supply voltage (Touch)	VDD TP	-0.3	5.5	V
Operating temperature	ToP	-20	70	°C
Storage temperature	TsT	-30	80	°C
Humidity	RH	一	90	%RH
